25FVF100M+P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
135°C SMD Hybrid E-Cap FVF-series
Product Code:
317101
Weight: 0.6 g
Manufacturer: SUNCON
Weight: 0.6 g
Manufacturer: SUNCON
Detailed information

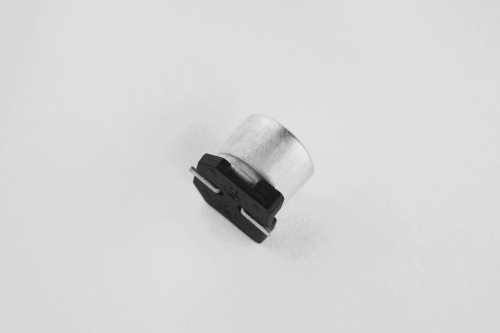

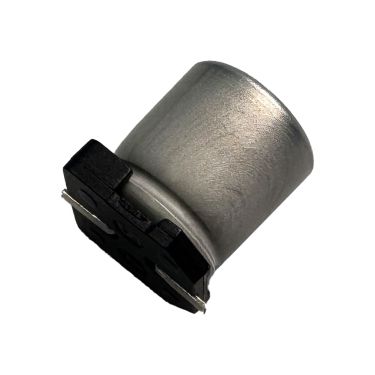

135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 25FVF100M+P with 4.000h guaranteed life time, very low ESR and particularly high ripple current capability.
Rated ripple current at 125°C: 2,700mA rms
Rated ripple current at 125°C: 2,700mA rms
For general questions
Technical Product Information
| Capacitance | 100µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1800mA rms |
| Impedance/ESR | 0,03Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 6,3mm |
| Height | 7,7mm |
| Series | FVF |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
