80FEF33MT
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
135°C THT Hybrid E-Cap FEF-Series
Product Code:
329827
Weight: 1.1 g
Manufacturer: SUNCON
Weight: 1.1 g
Manufacturer: SUNCON
Detailed information

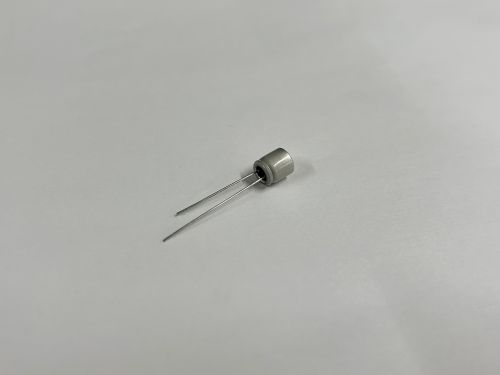

135°C THT Aluminum-Polymer-Hybrid Electrolytic Capacitor 80FEF33MT with 4.000h guaranteed life time, very low ESR and particularly high ripple current capability.
For general questions
Technical Product Information
| Capacitance | 33µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Max. Rated Ripple Curr.@100kHz | 3200mA rms |
| Impedance/ESR | 0.045Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | THT |
| Pitch | 3.5mm |
| Diameter | 8mm |
| Height | 9.5mm |
| Series | FEF |
| Voltage Type | DC |
| Rated Voltage | 80Vdc |
